    With its extremely low-resistance combined with the ability to suppress Electro Magnetic Interference the MSD 8.5mm Super Conductor Spark Plug wire is the ultimate performance wire!  From Top Fuel dragsters to street driven cars the 8.5mm Super Conductor Spark plug wire delivers performance!

    Våra produkter


    From Top Fuel dragsters to street driven cars the 8.5mm Super Conductor Spark plug wire delivers performance!

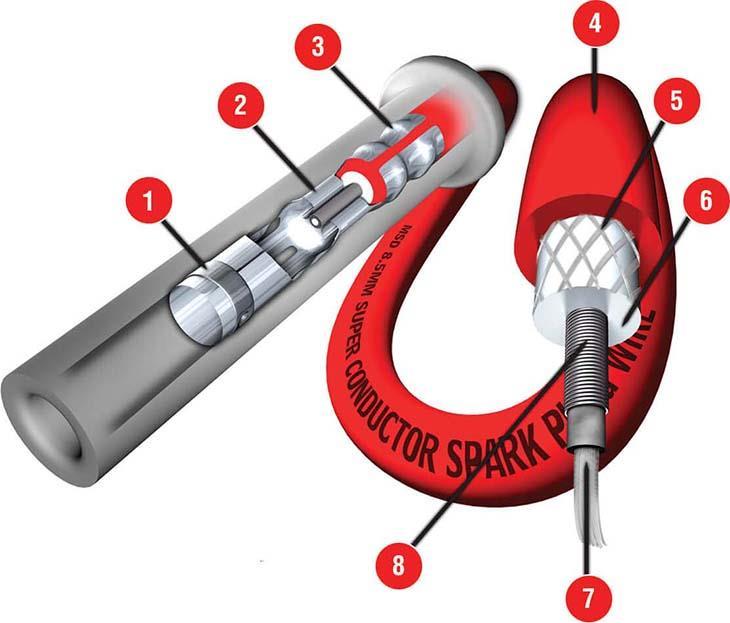

    Diagram


    1. Snap-Lock Plug Grip
    2. Separate Crimp Tabs for the Conductor
    3. Large Crimp Tabs grip the sleeve
    4. 8.5mm jacket protects against high heat and resists tears
    5. Extra heavy glass braid
    6. High dielectric insulator
    7. Ferro-magnetic impregnated center core
    8. Helically wound copper alloy conductor

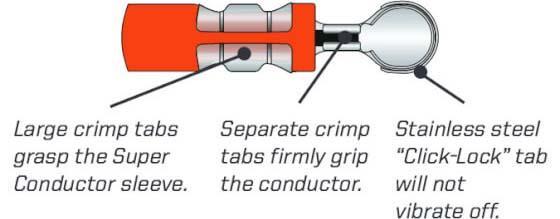

    Dual Crimp Terminals


    The MSD’s 8.5mm spark plug terminals feature “Dual Crimp” terminals. As the name implies, the terminals feature two crimps; one for the sleeve of the wire and another separate crimp to grasp the conductor. By having separate crimps, the conductor doesn’t need to be bent 180° and get squeezed between the terminal and sleeve. This individual conductor crimp produces a more secure crimp and there is less chance of spark arcing to the engine block or exhaust manifold through the boot!


    Features

    • Copper alloy conductor has a resistance value of less than 50 ohms per foot for superior spark
    • Ferro-magnetic impregnated core creates an effective EMI choke
    • Forty feet of conductor is wound into a single foot of wire for high EMI suppression
    • Conductor core features Dupont Kevlar material for increased tensile strength
    • Durable outer sleeve is a proprietary compound for resistance to high heat or abrasion

    Super Conductor Spark Plug wires are available in either red or black.

    Artiklar

    How To Make Custom Spark Plug Wires - 09/15/2020

    Whether you need an OE replacement set or something purpose-built for extreme performance, there’s no shortage of pre-made spark plug wire kits available today. But if your project involves a healthy dose of customization – whether that’s a power plant living in an engine bay it was never designed for, or significant modification to the engine itself – you may find yourself in a situation where a custom-made wire set is best option for your application. - Read More

    För mer info ...

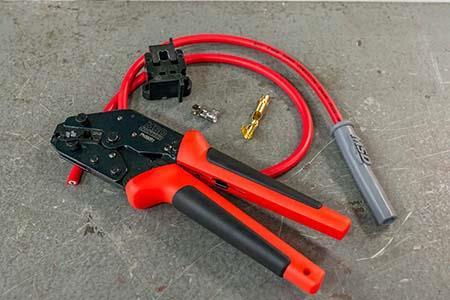

    Build your own MSD Plug wires!

    För mer info ...

    Spark Plug Wire Crimping
