Revolver with Insight CTS3

The new Edge Revolver Performance Chip is designed for 95-03 Ford 7.3L Power Stroke diesels and can make up to 150 HP (Depending on Model Year) with up to 6 performance programs switchable on the fly using the included switch!


Våra produkter


Up your performance for your Ford 7.3L Power Stroke

The biggest benefit of using the Edge Revolver chip over the competition is simple: Edge makes the BEST Diesel tunes. At Edge products, diesel performance is their passion. Every day they install cool new toys on their in-house diesel fleet in order to create an extraordinary driving experience. Their engineers build the products for people like themselves - Diesel Nuts! You can expect better tunes, better performance gains (level for level) and better drivability from an Edge Revolver chip than any other chip around for your 7.3L. They are proud diesel people, and they set out to prove it - just look at the dyno sheet!


Edge Revolver Kit

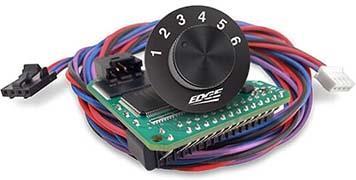

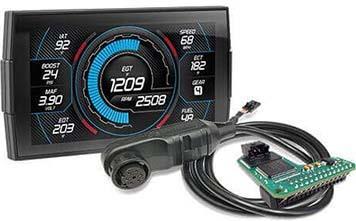

All-new six-position Edge Revolver chips for the Ford 7.3L diesel can now be controlled by the Insight CTS3! Change the power levels of your chip with using the touchscreen of the Insight CTS3. These new kits will include the Revolver chip, Insight CTS3, and the new EAS Revolver cable that allows the Insight to connect to the chip. The six-position chip offers adjustable horsepower, up to 140 horses, using Edge’s Insight CTS3 display. Simply pull down the top menu and adjust the power levels or select the Retro Screen which allows switching between multiple power levels on-the-fly!


Performance Settings

  • Level 1 - Stock
  • Level 2 - High Idle
  • Level 3 - Heavy Tow - 50hp/100tq
  • Level 4 - Light Tow - 75hp/150tq
  • Level 5 - Daily Driver - 100hp/200tq
  • Level 6 - Extreme - 140hp/250tq


How to Order an Edge Revolver Chip

Klicka på bilden för att se den i större format

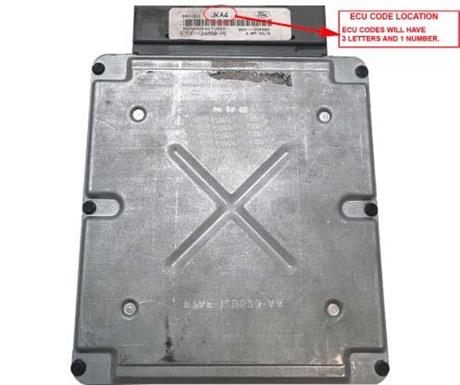

You will need some information from your truck before you order an Edge Revolver Chip. First, you will need the “ECU Code” from your truck’s ECU. It is easy to find- just look for your ECU which will be located behind the Driver’s Side Kick Panel where there is a black plug that will have a sticker on the plug that shows the ECU code. In the case that this sticker isn’t there or the plug has been removed then you can look in the engine compartment where the main harness connection connects to the ECU. In some cases you can put your phone down by the connector and take a picture of it to reveal the ECU code. If you can’t see it then you may need to remove the ECU. There will be a large 4 Digit Code there that are 3 letters and 1 number. These “ECU Codes” identify what ECU is in your truck, and they come in groups. Some examples might be NVK2 and NVK4, which share the same tunes which would have the same “Box Code”, but have different ECM codes. You will need to give your ECM code to the dealer that is burning your chip, or buy the chip pre-programmed for your ECM code (or box code family). Here is an example of what your ECM code will look like on the ECM.

SKU Application PCM Code Applicable PCM Codes
14001 1994.5-1997 Auto TDE1 LKM MIF NAW PRE PRY TDE TEE YBT ZAA
14002 1994.5-1997 Manual MLE1 ALF AUG BEG GOB MLE SOD
14003 Early 1999 Auto XLE7 FUT GLF HPA XLE
14004 Early 1999 Manual AWA4 AWA BDT CLB DYK
14005 1999.5-2001 Auto NVK4 AGD BKA CNH FIF HAM JLJ KRK LVS MNM MRT NVK PMT RXM YEV
14006 1999.5-2000 Manual DAC3 BAW BIS DAC NBD QEK VRP VXY XPC ZHL
14007 2001 Manual APX1 APX ZXG
14008 2002-2003 Auto VDH4 BXE KEK NWM PBY PRW TMA VDH VDU QLJ
14009 2002-2003 Manual AEB3 AEB GDU
14010 2000-2001 Excursion MQJ2 AVB EBM MQJ NMC UKN AXD1
14011 2002-2003 Excursion NQW2 MAP NQW SHT



Installation

You can easily install the Edge Revolver Performance Chip yourself. Follow the directions included with the product for specifics, but for a basic over-view here is what is involved.

  1. Make sure you do not have your truck’s key in the ignition
  2. Find your ECU in your truck
  3. Open the “J” port which is on the side of your ECM
  4. Use the included Scrubby pad/alcohol wipe to clean any goo or dust off the port (Make it REALLY clean)
  5. Hook your chip’s switch up to the chip itself
  6. Insert the chip over the exposed electronics port
  7. Run the switch wire off to the side
  8. Cover the port with the 4×4 sticker to make sure the ECM does not get additional dust in it
  9. Run your switch to the desired location and mount it
  10. Enjoy your performance tunes!
