Introducing HyperSpark Ignition, from Sniper EFI. Designed with one goal, to easily add Ignition timing control to nearly any Sniper EFI installation.


Våra produkter





Holley Sniper EFI HyperSpark Ignition System

  • Designed to be plug and play with Sniper EFI Systems
  • Hall Effect crank trigger sensor in a billet distributor housing provides a noise free RPM signal to the Sniper ECU
  • Patented Clear Installation Cap makes phasing the distributor virtually fool proof
  • Pre-Terminated Ignition coil connector removes any doubt of loose connections at the Ignition Coil
  • HyperSpark CD Ignition box is sealed and powder coated to be installed in the harshest of locations
  • External LED on HyperSpark CD Ignition box helps verify 12v, cranking RPM, and low battery voltage
  • The HyperSpark ignition coil comes with an integrated mounting bracket, making installation hassle free
  • Perfect for anyone wanting to add timing control to their Sniper EFI Installation
  • Timing Control Improves Idle stability, throttle response, fuel economy and Wide Open Throttle Horsepower!

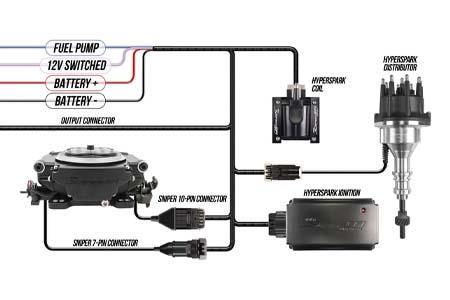

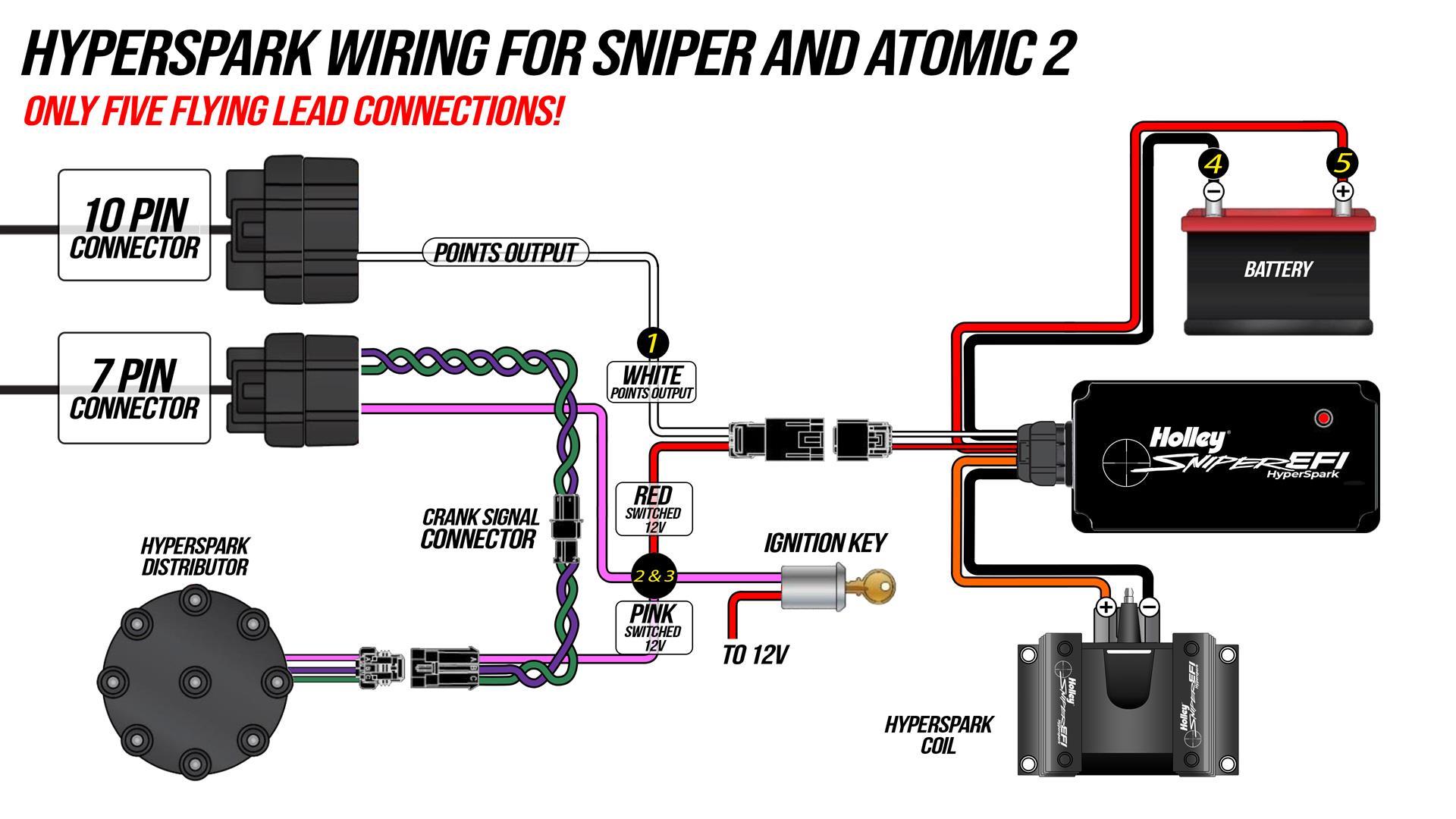

  1. White Wire - Connect the loose points output wire from your HyperSpark ignition box to the white wire on the Sniper 10-pin connector.
  2. Pink Wire – Connect the HyperSpark distributor’s pink switched 12-volt wire and 7-pin Sniper connector’s pink wire to switched 12-volts.
  3. Red Wire – Small gauge red wire located on the two-pin HyperSpark ignition box harness can be tied to a clean switched 12-volt source with the wires in point two.
  4. Thick Black Wire – Connect from the HyperSpark ignition box directly to the negative battery post.
  5. Thick Red Wire - Connect from the HyperSpark ignition box directly to the positive battery post.
